Uptime is critical for any operation, whether you’re running a New Holland Wheel Loader or a fleet of Takeuchi Compact Track Loaders. In modern diesel engines, the Selective Catalytic Reduction (SCR) system is essential for meeting emissions regulations, and at its heart is an often-overlooked component: the Diesel Exhaust Fluid (DEF) filter. Understanding its role and maintenance schedule is key to preventing costly downtime.
To truly appreciate the DEF filter's significance, we first need to understand the larger system it supports. The SCR system is a sophisticated emissions control technology designed to reduce harmful nitrogen oxides (NOx) emitted by diesel engines. These pollutants contribute to smog and acid rain, and strict worldwide legislation has driven the widespread adoption of SCR technology in heavy-duty vehicles and off-road equipment since around 2010.
The process begins with Diesel Exhaust Fluid (DEF), a non-toxic solution typically composed of 32.5% high-purity urea and 67.5% deionized water. This fluid is stored in a dedicated tank on the vehicle, separate from the diesel fuel tank. When the engine is running, the SCR system precisely injects DEF into the hot exhaust stream. In this high-temperature environment, the urea in the DEF converts into ammonia. This ammonia then reacts with the NOx gases over a special catalyst, changing them into harmless nitrogen gas and water vapor, which are then released into the atmosphere. This chemical change is highly efficient, capable of reducing NOx emissions by as much as 95%.
The DEF filter acts as a crucial gatekeeper within this intricate system. Its role is to ensure that the DEF delivered to the SCR system is impeccably clean and free from any contaminants. Without this vigilant guardian, the entire emission control process can be severely compromised, leading to a cascade of expensive problems and operational disruptions for your valuable equipment.
What is a DEF Filter and Why is it Essential?
The DEF filter’s primary job is to protect the sensitive components of the SCR system. DEF, a solution of urea and deionized water, can form crystals or pick up debris during storage and handling. A clogged filter can’t stop these contaminants from reaching the DEF dosing pump and injector, leading to malfunction and potential failure of the entire aftertreatment system on equipment like Link-Belt Excavators or New Holland Mini Excavators.
The Role of Filtration in Preventing System Failure
Consider the delicate nature of the SCR system's components. The DEF dosing pump is responsible for precisely metering the correct amount of DEF into the exhaust stream. This pump contains fine internal passages and moving parts that are highly sensitive to abrasive particles. Similarly, the injector nozzle, which sprays the DEF into a fine mist, has very small orifices that can easily become clogged by even microscopic debris or urea crystals. A blocked injector can
lead to improper DEF atomization, uneven distribution, and ultimately, inefficient NOx conversion.
Beyond the pump and injector, the SCR catalyst itself, an expensive and vital component, can also suffer damage. Contaminants can foul the catalyst's surface, reducing its effectiveness and potentially leading to permanent damage that necessitates costly replacement. When the SCR system cannot perform its function effectively, the vehicle’s Engine Control Module (ECM) will
detect this inefficiency, often triggering diagnostic trouble codes and potentially forcing the engine into a reduced power or “derate” mode to prevent further environmental impact or system damage. This derate mode directly translates to lost productivity and revenue for your operation.
Contaminants: The Invisible Threat
Urea crystals; dirt; debris; storage contamination; transportation contamination; A DEF filter is the last line of defense against particles that can compromise the system. Even small amounts of dust or debris introduced during refilling can cause significant problems down the line for your Hitachi Wheel Loaders or other construction equipment rentals.
The purity of DEF is paramount. While manufacturers go to great lengths to produce high- quality DEF, the journey from production facility to your equipment’s tank is fraught with opportunities for contamination. Bulk storage tanks, transfer hoses, and even the nozzles at dispensing stations can introduce impurities. If you’re refilling from smaller containers, dust or debris on the container’s spout or around your equipment’s DEF fill port can easily find its way into the tank.
Urea crystallization is another significant concern. When DEF dries, the water evaporates, leaving behind solid urea crystals. These crystals can form around the fill neck, in the tank, or within the dosing system if it’s not properly purged after shutdown. Over time, these crystals can accumulate and become large enough to clog the filter or, worse, bypass a failing filter and damage downstream components. The DEF filter is specifically designed with a fine micron rating to capture these minute particles and prevent them from causing havoc within the SCR system.
Key Signs and Recommended Intervals for DEF Filter Replacement
This section will help you identify when your equipment, such as a Takeuchi Zero Swing Excavator, needs a new DEF filter.
Recognizing the early warning signs of a failing DEF filter is crucial for preventing more severe issues. Because the DEF filter’s role is so integral to the SCR system’s operation, its degradation often manifests through symptoms that reflect the broader system’s struggle to meet emissions targets or function correctly. Being attuned to these indicators can save you significant repair costs and minimize operational downtime.
Common Symptoms of a Clogged DEF Filter
One of the most immediate and undeniable signs that something is amiss with your DEF system, potentially involving the filter, is the illumination of the “Check Engine Light” or a dedicated DEF System Warning Light” on your equipment’s dashboard. This warning is almost invariably accompanied by diagnostic trouble codes (DTCs) that are stored in the Engine Control Module (ECM). These codes can range from general SCR system malfunctions (e.g., SPN 4094 FMI 31, indicating insufficient exhaust fluid/reagent quality) to more specific issues like low DEF pressure (e.g., SPN 3251 FMI 4), which a clogged filter can directly cause. If you have diagnostic tools, checking these codes can provide a clearer picture.
Beyond dashboard warnings, you might observe a noticeable decrease in engine performance. This could manifest as reduced power output, sluggish acceleration, or a general lack of responsiveness from the engine. In many modern diesel engines, a malfunctioning SCR system, often due to a clogged DEF filter restricting fluid flow, can trigger a “derate” mode. This is a protective measure where the ECM intentionally limits engine power (sometimes by as much as 25-50%) to prevent further damage or to ensure the vehicle remains within emissions compliance, even if at a reduced capacity. In severe cases, the engine might even enter a “limp home” mode, severely restricting speed and power, or refuse to start altogether.
Another less obvious symptom can be an unexplained increase in DEF consumption. While counterintuitive, if the system is struggling to inject DEF efficiently due to a clogged filter, it might attempt to compensate by demanding more fluid, or the inefficient combustion due to other related issues might indirectly affect DEF usage. Conversely, a severely clogged filter could lead to reduced DEF consumption if the fluid simply cannot pass through, which would also trigger fault codes due to insufficient NOx conversion.
Finally, while less common for the DEF filter specifically, some operators might report strange smells. If DEF is not being properly injected or is crystallizing excessively, a pungent diesel odor or a sweet, ammonia-like smell could be detectable, indicating a breakdown in the SCR process. However, these smells are more often associated with issues further down the exhaust system or with the DEF fluid itself rather than just the filter.
Establishing a Replacement Schedule for Construction Equipment
Manufacturer recommendations; operating hours; time-based intervals; environmental conditions; While some guidelines suggest long intervals based on mileage, construction equipment like New Holland Skid Steer Loaders or Takeuchi Compact Wheel Loaders often operate in dusty environments for fewer total hours. A more practical approach is to follow a schedule based on operating hours (e.g., every 3,000 hours) or time (e.g., annually or every 2-3 years), whichever comes first.
Determining the optimal replacement interval for a DEF filter can be complex, as
recommendations vary widely and often need to be adapted to real-world operating conditions. Manufacturers might specify intervals based on mileage (e.g., 120,000-200,000 miles) or operating hours (e.g., 6,500 hours). However, these guidelines are typically developed for on- highway trucks that accumulate high mileage over relatively short periods.
For construction equipment, the operating profile is often quite different. A Link-Belt Material Handler, for instance, might log many engine hours in a dusty, demanding environment but cover far fewer miles than a long-haul truck. In such scenarios, relying solely on mileage-based intervals can be misleading and lead to premature filter failure. The constant vibration, exposure to extreme temperatures, and the inherent dustiness of construction sites mean that filters can accumulate contaminants much faster.
Therefore, for off-road construction equipment, a more prudent approach is to prioritize time-based or hour-based intervals. Many experienced technicians and equipment owners recommend replacing the DEF filter annually, or every 2-3 years, regardless of mileage. For hour-based maintenance, a good starting point is every 3,000 hours, or even more frequently in exceptionally dusty or harsh operating conditions. This proactive approach accounts for factors like DEF
degradation over time, potential condensation within the system, and the accumulation of contaminants that might not correlate directly with mileage.
Always consult your equipment’s operator’s manual for specific recommendations. However, be prepared to adjust these guidelines based on your actual operating environment and any recurring DEF system issues you might encounter. For instance, if you frequently experience DEF-related
fault codes, it might be a strong indicator that your current filter replacement schedule is not adequate. The cost of a new DEF filter is minimal compared to the potential expense of repairing a damaged dosing pump, injector, or SCR catalyst.
A Guide to Experienced DEF Filter Replacement
This process is a crucial part of maintaining your used construction equipment for sale. Performing this task yourself can save on labor costs and give you a deeper understanding of your equipment’s maintenance needs.
Step 1: Preparation and Safety
Safety glasses; gloves; clean rags; locate filter housing; clean the area; Before you begin, ensure the machine is parked on level ground and turned off. Wear appropriate safety gear, as DEF can be an irritant. Thoroughly clean the area around the DEF filter housing to prevent any dirt from entering the system during the change. The filter is often located on the DEF pump module, which can be found near the DEF tank on equipment like a New Holland Crawler Dozer.
Safety should always be your top priority. Ensure the equipment is completely shut down, the parking brake is engaged, and if working underneath, use appropriate jack stands or secure lifting equipment. DEF is generally non-toxic, but it can be corrosive to some materials and an irritant to skin and eyes. Always wear safety glasses and chemical-resistant gloves. Have plenty of clean rags or absorbent pads on hand, as some DEF fluid will inevitably spill during the process.
Locating the DEF filter typically involves finding the DEF tank and then tracing the lines to the DEF dosing pump module. This module often houses the filter. The exact location can vary significantly between different makes and models of equipment, so consulting your operator’s manual is highly recommended. Once located, inspect the area around the filter housing. It's common for road grime, dust, and dried DEF residue to accumulate here. Before attempting to
open anything, thoroughly clean the entire area with a suitable cleaner and rinse it well. This step is critical to prevent any external contaminants from falling into the clean DEF system when the filter housing is opened.

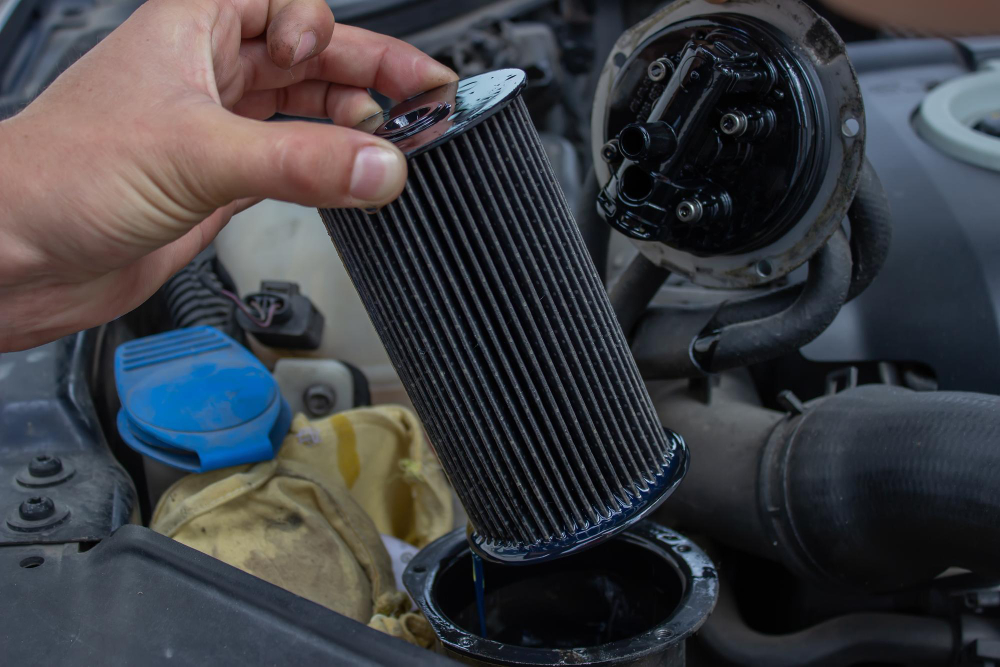

Step 2: Removing the Old Filter
Filter housing cap; filter wrench; socket; extraction tool; O-ring;
1. Prepare for Spillage: Place absorbent pads or rags directly beneath the DEF filter housing. Even if the system is depressurized, a small amount of DEF will likely drain out when the housing is opened.
2. Loosen the Cap: Use the correct size socket or filter wrench to carefully loosen the DEF filter housing cap. These caps can sometimes be quite tight, especially if they haven’t been removed in a long time. Avoid excessive force that could damage the cap or housing.
3. Remove the Cap and Filter: Once loosened, slowly unscrew the cap. The old filter element may come out attached to the cap, or it might remain seated within the housing. If it stays in the housing, you might need to gently pull it out. Some filter kits include a small plastic extraction tool for this purpose, but sometimes a pair of pliers can carefully assist in grasping the edge of the filter.
4. Inspect and Clean: Once the old filter is removed, carefully inspect the filter housing for any debris, crystallization, or damage. Clean the interior of the housing thoroughly with a clean rag. Also, note the position and condition of any O-rings or seals, as these will typically be replaced with new ones from your filter kit.
5. Dispose of Old Filter: Properly dispose of the old filter and any spilled DEF according to local environmental regulations. DEF is biodegradable, but it's best to contain and dispose of it responsibly.
Use the correct size socket or filter wrench to loosen the housing cap. Once the cap is off, a small amount of DEF may spill, so have a rag ready. The old filter may come out with the cap or may need to be pulled out separately, sometimes with a small tool included in the new filter kit. Pay attention to any O-rings or seals that need to be replaced.

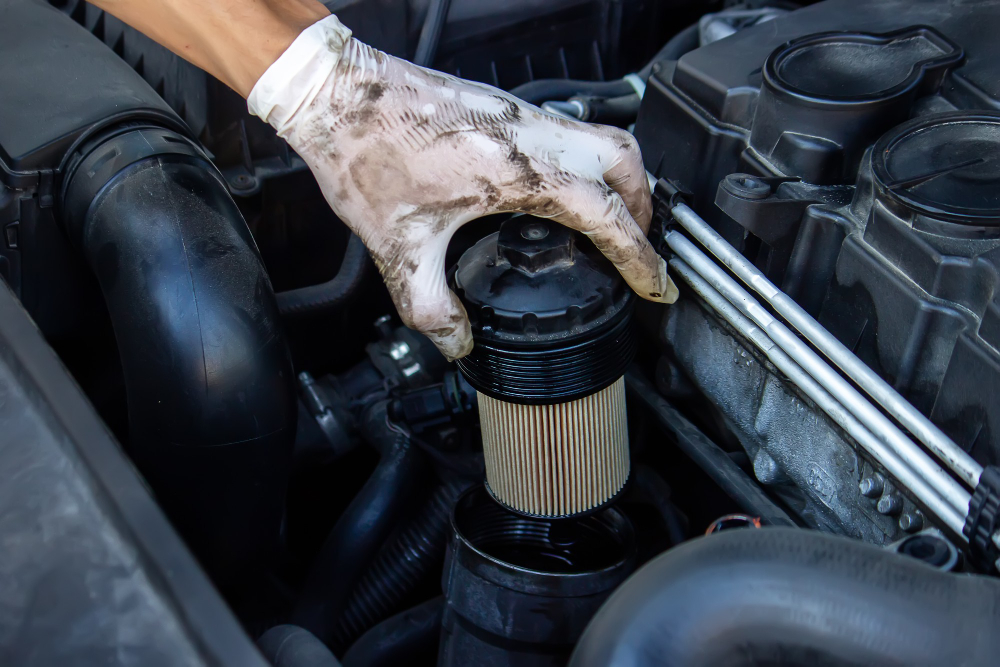

Step 3: Installing the New Filter and Final Checks
New filter kit; lubricate O-ring; proper seating; torque specifications; check for leaks; For an experienced DEF filter replacement, ensure the new filter is seated correctly. Lightly lubricate the new O-ring with fresh DEF fluid only—never use grease or oil. Tighten the housing cap to the manufacturer’s specified torque. After installation, start the engine and check for any leaks around the filter housing.
Your new DEF filter kit should include the filter element and new O-rings or seals. It’s crucial to always use the new seals provided, as the old ones can become brittle or lose their elasticity over time, leading to leaks.
1. Install New O-rings: Carefully remove the old O-rings from the cap and housing (if applicable). Install the new O-rings in their correct grooves.
2. Lubricate O-rings: This is a critical step often overlooked. Lightly lubricate the new O- rings with fresh DEF fluid. Do not use engine oil, grease, or any other lubricant. Petroleum- based products can degrade the O-rings and contaminate the DEF system. The DEF fluid itself provides enough lubrication for proper sealing and also helps prevent the O-rings from sticking and making future removal difficult.
3. Insert New Filter: Carefully insert the new DEF filter element into the housing. Ensure it is seated correctly and fully engaged. It should typically fit snugly without excessive force.
4. Reinstall Cap: Thread the housing cap back onto the housing by hand, ensuring it starts smoothly and doesn’t cross-thread. Once hand-tight, use your socket or wrench to tighten it to the manufacturer’s specified torque. This torque value is crucial; too loose, and it will leak; too tight, and you risk damaging the cap or housing. This specification can usually be found in your equipment’s service manual.
5. Final Inspection and Leak Check: Once everything is tightened, clean up any residual DEF. Start the equipment’s engine and allow it to run for a few minutes. Carefully inspect the area around the newly installed filter for any signs of leaks. If you see any drips, shut down the engine, re-check the cap's tightness (without over-torquing), and ensure the O-rings are properly seated.
Performing this maintenance correctly ensures the integrity of your DEF system and contributes to the overall health and longevity of your equipment. For those looking for equipment parts or needing assistance with any aspect of their fleet maintenance, reliable resources are always available.
The Impact of Proactive DEF System Maintenance
Neglecting the DEF filter can lead to a cascade of problems, turning a simple maintenance task into a major repair.
The seemingly small and inexpensive DEF filter plays a disproportionately large role in the health and operational efficiency of your diesel equipment. Overlooking its regular replacement is a common oversight that can trigger a domino effect of failures, culminating in significant financial strain and operational headaches.
Potential Consequences of a Clogged Filter
Doser pump failure; SCR system damage; engine derates; equipment downtime; voided warranty; A restricted filter forces the DEF pump to work harder, leading to premature failure. Contaminants passing through a failed filter can permanently damage the expensive SCR catalyst, and persistent engine derates will cripple productivity on the job site.
When a DEF filter becomes clogged, the DEF dosing pump is forced to work against increased resistance. This constant strain can lead to premature wear and tear on the pump’s internal components, eventually causing it to fail. Replacing a DEF dosing pump is a far more expensive repair than a simple filter change. Moreover, if the filter is severely compromised or bypassed due to extreme clogging, unfiltered DEF, laden with crystals and particulate matter, can reach the
delicate DEF injector nozzle. This can cause the nozzle to become blocked or damaged, leading to improper DEF spray patterns or complete failure, further exacerbating emissions issues and potentially leading to a complete system shutdown.
The most catastrophic consequence of a neglected DEF filter is often the damage to the Selective Catalytic Reduction (SCR) catalyst itself. This catalyst is a complex and highly expensive component, often costing thousands of dollars to replace. Contaminants that bypass a failed filter can coat the catalyst’s surface, reducing its efficiency in converting NOx. Over time, this fouling can become irreversible, necessitating the replacement of the entire catalyst.
Furthermore, a malfunctioning SCR system due to a clogged filter will almost certainly trigger the engine’s “derate” mode. This protective measure, mandated by emissions regulations, severely limits engine power and speed. For construction equipment, an engine derate means a drastic reduction in productivity, inability to complete tasks efficiently, and potentially significant project delays. The equipment essentially becomes a very expensive paperweight, generating no revenue while incurring costs.
Beyond the immediate operational and repair costs, neglecting DEF filter maintenance can also have warranty implications. Manufacturers often specify regular maintenance schedules, and failure to adhere to these can void your equipment’s warranty, leaving you fully responsible for costly repairs that could have been covered. This is why maintaining detailed records of all your
equipment service & maintenance is so important.
Benefits of an Experienced DEF Filter Replacement
Engine longevity; optimal performance; fuel efficiency; emissions compliance; peace of mind; Regularly changing the filter protects your investment, ensures your Hitachi Compact Excavators and New Holland Tractor Loaders Backhoes run at peak performance, and maintains emissions compliance. If you encounter persistent SCR fault codes or are unsure about the procedure, it’s wise to consult a professional. For complex diagnostics, relying on an Kelbe Bros. experienced Wisconsin service can save you time and prevent further issues.
The benefits of proactive DEF filter replacement extend far beyond simply avoiding costly repairs. It’s an investment in the overall health, efficiency, and longevity of your valuable diesel equipment.
Firstly, ensuring a clean and uninterrupted flow of DEF directly contributes to optimal engine performance. When the SCR system is functioning as intended, the engine can operate at its designed parameters without being hampered by derates or fault codes. This means consistent power delivery, better responsiveness, and the ability to tackle demanding tasks without compromise.
Secondly, proper DEF system function is intrinsically linked to fuel efficiency. An inefficient SCR system can sometimes lead to the engine’s ECM adjusting combustion parameters to compensate for higher NOx output, which can indirectly increase fuel consumption. By maintaining a healthy DEF system, you help ensure your engine runs as cleanly and efficiently as possible, potentially leading to noticeable savings at the fuel pump over the long term.
Thirdly, and perhaps most importantly from a regulatory standpoint, regular DEF filter replacement ensures continued emissions compliance. Modern diesel equipment is subject to strict environmental regulations. A properly functioning SCR system, supported by a clean DEF filter, guarantees that your equipment meets these standards, avoiding potential fines, operational restrictions, or even legal issues.
Finally, proactive maintenance provides peace of mind. Knowing that a critical system like the SCR is being properly cared for allows you to focus on your core operations without the constant worry of unexpected breakdowns or expensive repairs. It protects your investment, extends the operational life of your equipment, and maintains its resale value. Whether you’re operating new
equipment or rental equipment, consistent maintenance is key.
While we’ve provided a comprehensive guide to DIY DEF filter replacement, we understand that not everyone has the time, tools, or confidence to tackle every maintenance task. If you’re dealing with persistent SCR fault codes, complex diagnostic challenges, or simply prefer to leave specialized maintenance to the experts, don’t hesitate to seek professional assistance.
Frequently Asked Questions about DEF Filter Replacement
Do all modern diesel machines have a serviceable DEF filter?
Not all, but most heavy-duty off-road equipment manufactured since 2010, including many Takeuchi excavators and New Holland compact wheel loaders, have a serviceable DEF filter. Some lighter-duty systems may only have a non-serviceable screen. Always consult your
operator’s manual. The presence and type of DEF filter can vary significantly by manufacturer, model, and even the specific year of production. While the majority of heavy-duty equipment equipped with SCR systems will have a replaceable DEF filter, typically located within or near the DEF dosing pump module, some smaller or older systems might integrate a non-serviceable screen or filter that is considered part of a larger component assembly. This is why familiarizing yourself with your specific equipment’s manual is the first and best step to understanding its DEF system.
Can I clean and reuse my old DEF filter?
No. DEF filters are designed for single use. They trap microscopic particles and urea crystals that cannot be effectively cleaned out. Attempting to reuse a filter will lead to poor performance and risks contaminating the entire SCR system. The filter media used in DEF filters is engineered to capture extremely fine particles, often down to 1 micron. Once these pores are filled with contaminants or clogged with solidified urea crystals, their filtration efficiency is severely compromised. Any attempt to clean them, whether by rinsing or back-flushing, will likely damage the delicate filter media, releasing trapped particles back into the system or creating pathways for new contaminants to pass through. The minimal cost of a new filter far outweighs the enormous risk of damaging expensive SCR components by reusing an old one.
What happens if I use poor-quality DEF?
Using low-quality or contaminated DEF is a primary cause of premature filter clogging and SCR system failure. Always use DEF that meets the ISO 22241 standard from a sealed container to ensure the longevity of your equipment, from mini excavators for sale to the largest wheel loaders for sale. Poor-quality DEF can contain impurities such as mineral deposits, heavy metals,
or even petroleum products. These contaminants can rapidly clog the DEF filter, requiring premature replacement. Beyond the filter, they can also damage the dosing pump and injector, and even poison the SCR catalyst, rendering it ineffective. Furthermore, DEF that does not meet the ISO 22241 standard might have an incorrect urea concentration, which can lead to inefficient NOx conversion, increased emissions, and the triggering of fault codes and engine derates. Always purchase DEF from reputable suppliers, ensure it is stored correctly (away from direct sunlight and extreme temperatures), and use clean dispensing equipment to prevent any external contamination.
